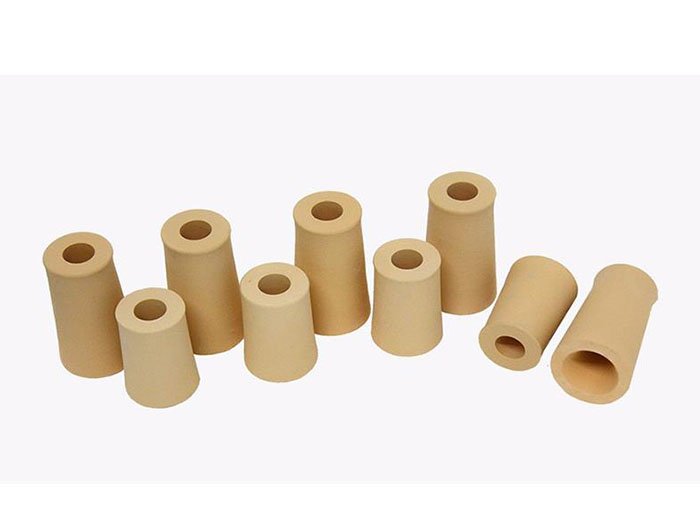

A Tundish Nozzle is a critical component in various high-temperature industrial processes, particularly in metallurgy and glass manufacturing. Made from materials that can withstand extreme temperatures, such as alumina, zirconia, or magnesia, refractory nozzles are designed to control the flow of molten metal, slag, or glass. They ensure precise and consistent pouring, which is essential for maintaining the quality and integrity of the final product.
In the steelmaking process, precision and control are paramount. Among the many components that play a crucial role in ensuring high-quality output is the tundish nozzle. This article delves into the significance of tundish nozzles, their functions, and the materials that make them indispensable in modern metallurgical practices.
| Zirconia Inserts | Tundish Nozzle Outer | |||||
| LKZN-L | LKZN-M | LKZN-H | LKTN75 | LKTN85 | LKTN90 | |
| Physical Properties | ||||||
| Apparent Porosity (%) | 11-12 | 8-10 | 6-8 | 20 | 18 | 16 |
| Bulk Density
(g/cm3) |
≥4.9 | ≥5.2 | ≥5.3 | 2.6 | 2.8 | 3 |
| Chemical Analysis(%) | ||||||
| ZrO2 + HfO2 | ≥94.0 | ≥95.5 | ≥95.5 | / | / | / |
| SiO2 | 1.1 | 0.23 | 0.5 | 20 | 13 | 8 |
| TiO2 | 0.2 | 0.2 | 0.1 | 3 | 2.1 | 0.3 |
| Fe2O3 | 0.5 | 0.05 | 0.05 | 2.5 | 2 | 0.58 |
| Al2O3 | 0.4 | 0.42 | 0.1 | ≥75 | ≥85 | ≥90 |
| CaO | 0.2 | 0.15 | 0.15 | 0.2 | 0.1 | 0.2 |
| MgO | 2.5 | 2.4 | 2.4 | 0.2 | 0.1 | 0.06 |
| Na2O | 0.03 | 0.01 | 0.01 | 0.6 | 0.5 | 0.3 |
A tundish nozzle is a vital component used in the continuous casting of steel. It is installed at the bottom of the tundish—a container that holds molten steel before it is cast into molds. The primary function of the tundish nozzle is to control the flow of molten steel from the tundish into the mold, ensuring a consistent and controlled pour.
Tundish nozzles are typically made from high-quality refractory materials that can withstand the extreme temperatures and corrosive nature of molten steel. Common materials include:
Tundish nozzles are extensively used in the continuous casting process in steelmaking. They are crucial in producing various steel products, from slabs and billets to blooms, by ensuring that the molten steel is cast in the most efficient and defect-free manner possible.
The tundish nozzle may seem like a small component in the grand scheme of steelmaking, but its impact is significant. By controlling the flow of molten steel, preventing contamination, and managing temperature, tundish nozzles play a crucial role in ensuring the production of high-quality steel. The choice of materials and nozzle design can greatly influence the efficiency and output of the steelmaking process, making them a key focus area for innovation in the metallurgical industry.
